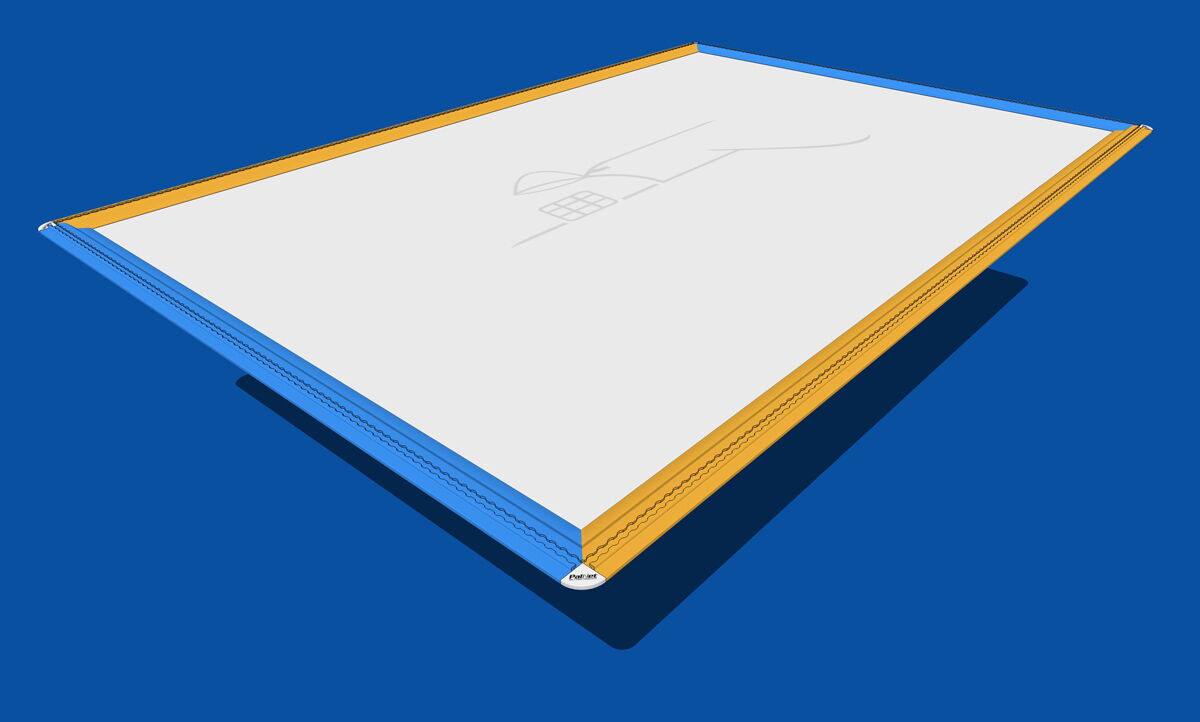

PAG/PAJ Air Cargo Pallet 88" x 125"

The PalNet PAG/PAJ air cargo pallet is one of the most common pallet in the aviation industry. It performs reliable in its day to day business around the world.

The PAG/PAJ pallet is made of a high resistant aluminium sheet (alloy 7021-T6) and four edge rails (alloy 7020-T6) with a continuous seat track according to MS 33601A. The four edge rails are forming a frame around the sheet. The sheet and the edge rails are connected by high tensile aluminium forged corners and stainless steel rivets around the perimeter of the edge rail frame. Due to the non- welded construction, damaged edge rails are easy to replace.

Data:

IATA PAG/PAJ
Size 88" x 125"
Part-Number 25A04-()
MGW 6,804 kg / 15,000 lbs
Tare weight
4.0 mm sheet 93 kg / 205 lbs
3.5 mm sheet 86 kg / 190 lbs
3.0 mm sheet 79 kg / 174 lbs
NAS 3610-Code 2A6P
Documentation CMM and IPL are available on request
Certified by JAA
Release certificate EASA Form One

Options on all standard pallets

PalNet offers you besides its standard configuration options on your PAG/PAJ pallet such as:



  • colored edge rails and corners
  • your airline logo on the base sheet
  • net attachment points lacquered in your prefered color
  • permanently attached net
  • ID code lasered on red inserts on all four sides
  • attached Bluetooth module
  • Barcode/QR code as sticker
  • permanently attached wing/extender

All options can be discussed with our sales team.
