PLA Air Cargo Pallet 60.4 x 125"

The PalNet PLA air cargo pallet is one of the most  common in the aviation industry. It performs reliable in its day to day business around the world.

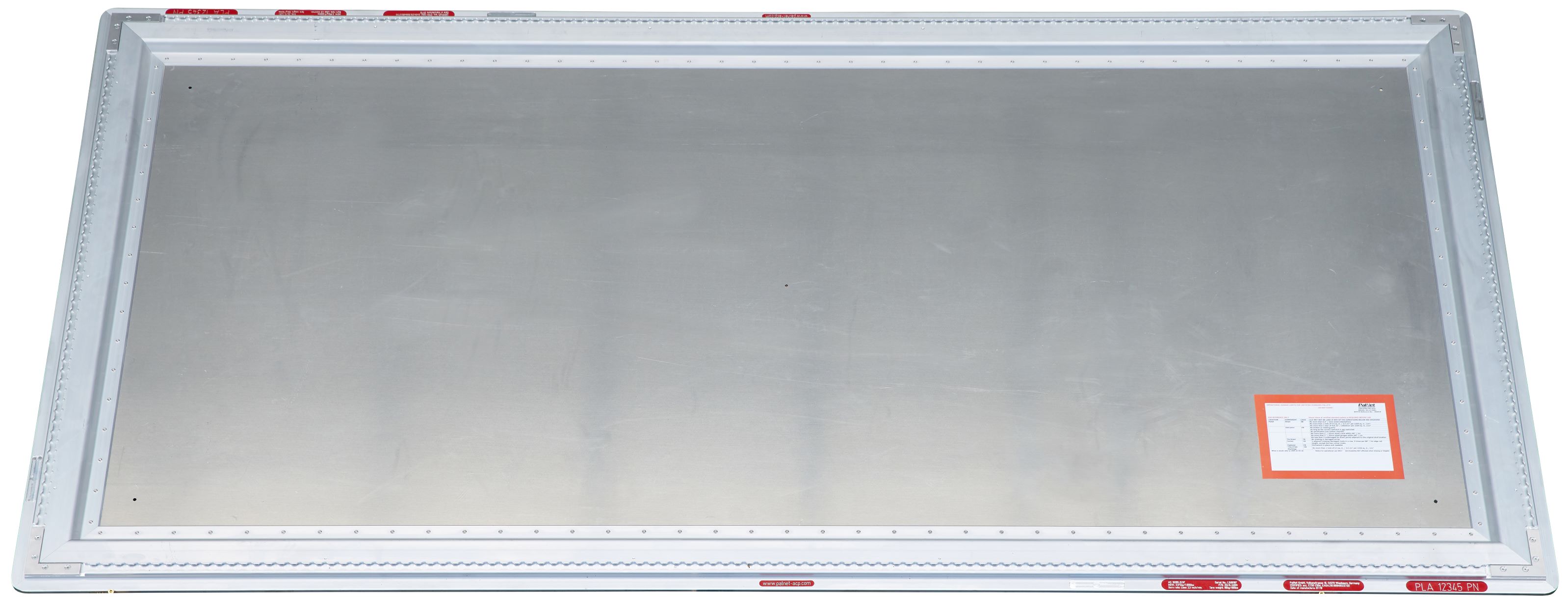

The PalNet PLA  air cargo pallets are consisting of a high resistant aluminium plate (alloy 7021-T6) and four edge rails (alloy 7020-T6) with a continuous seat track according to MS 33601A. The four edge rails are forming  a frame around the plate. The edge rails are connected by 4 inserted extruded corners and 8 corner angels on top. The plate is connected with stainless steel rivets around the perimeter of the edge rail frame. Due to the non- welded construction damaged edge rails are easy to replace.

PalNet offers two versions of PLA pallets.

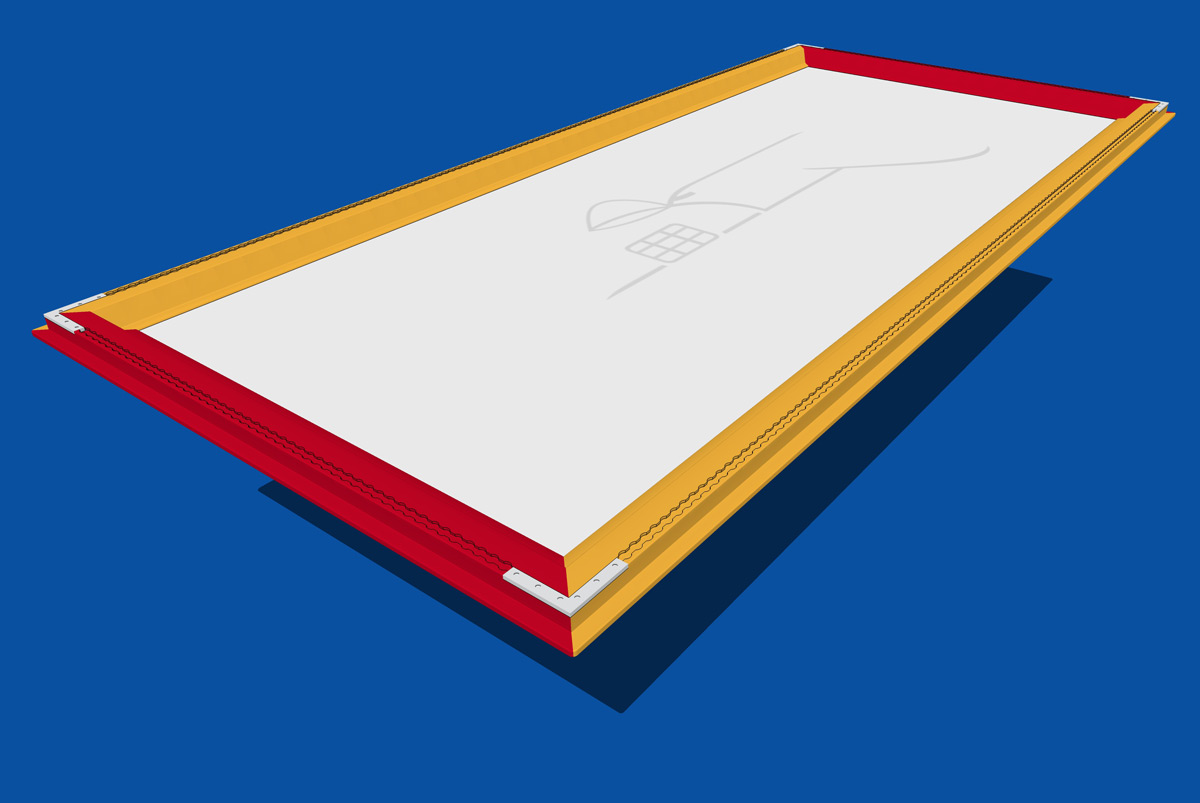

Our all new Flat-PLA 25L15-(40R) is the first single sheet PLA with a lower edge rail with just 35 mm and a usable area of 2916 x 1275 mm. Strength has increase but with the same weight as before.

Data:

IATA PLA
Size 60.4" x 125"
Part-Number 25L15-()
MGW 3,175 kg / 7.000 lbs
Tare weight
4.0 mm sheet 86 kg / 190 lbs
NAS 36100-Code 2L3P
Documentation CMM and IPL are available on request
Certified by EASA
Release certificat EASA Form One
IATA PLA
Size 60.4" x 125"
Part-Number 25L10-()
MGW 3,175 kg / 7,000 lbs
Tare weight
4.0 mm sheet 86 kg / 190 lbs
NAS 3610 Code 2L5P
Documentation CMM and IPL are available on request
Certified by JAA
Release certificate EASA Form One

Options on all PLA standard pallets



PalNet offers you besides its standard configuration options on your PLA pallets such as:



  • Colored edge rails and corners
  • your airlines logo on the base sheet
  • net attachment points lacquered in your preferred colour
  • ID code engraved on red inserts on all four sides
  • attached Bluetooth module
  • Barcodes/QR codes as sticker
  • Permanently attached net
  • Permanently attached wings/extenders

All Options can be discussed with our sales team.
