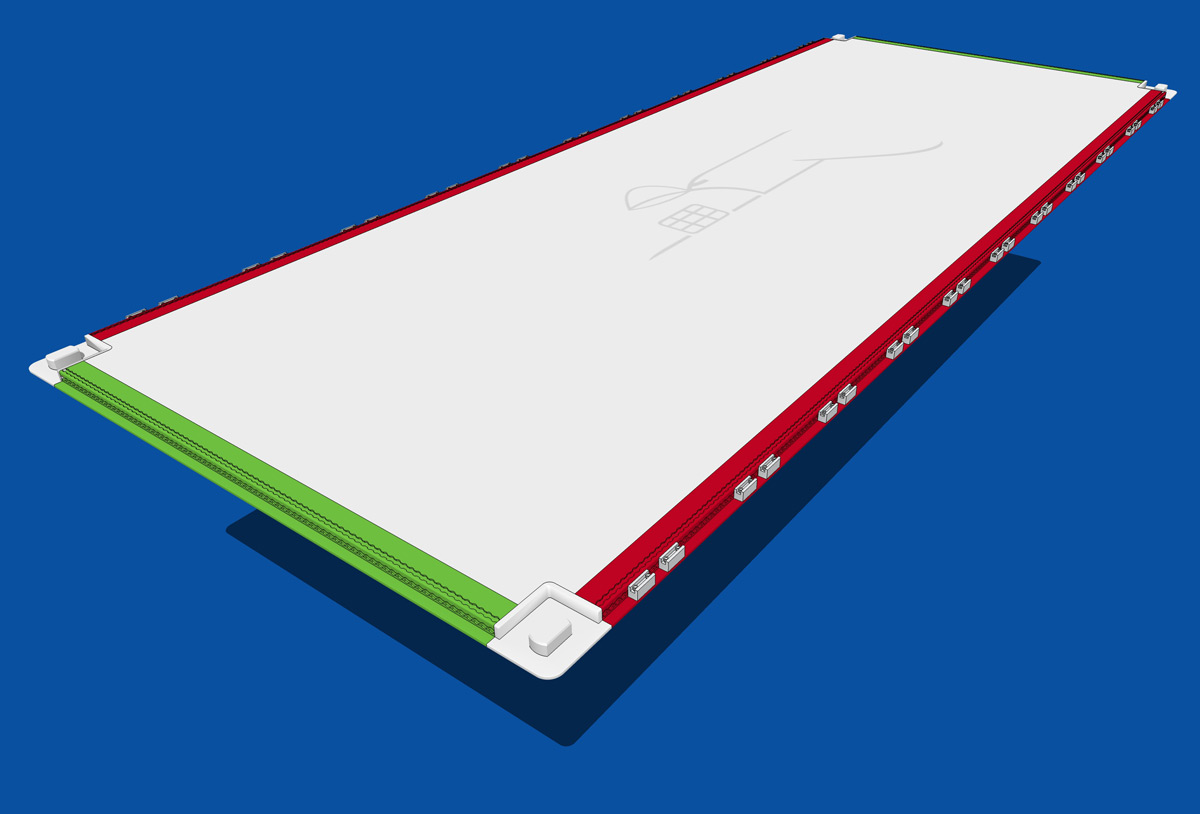

PGF Air Cargo Pallet 96" x 238.5"

The PalNet PGF air cargo pallet is the most reputed heavy duty pallet on the market right now. Due to its long lifetime, easy repair methods and short lead time. It performs reliable in the day to day business around the world.

The pallet consists of a frame of strong extrusions along the perimeter of the pallet. Horizontally the edge rails have a continuous seat track, vertically the seat track is equipped with 3-g holes between the side lock blocks. The PGF pallet core consists of 6 longitudinal double-t-stringers as stiffeners which are connected to the pallet frame. The top and bottom sheets are riveted to the PGF pallet frame and the stiffeners by heavy duty blind rivets with a diameter of 6.4mm. The corners with the marine pins to accommodate ISO corners are of solid aluminium. The side lock blocks are vertically attached to the edge rails by bolts and nuts.

Data:

IATA PGF
Part-Number 25G01-ISO-()
Size 96" x 238.5"
MGW 13,608 kg / 30,000 lbs
Tare weight
4.5 mm sheet 551 kg / 1,215 lbs
NAS 3610-Code 2G1P
Documentation CMM and IPL are available on request
Certified by EASA, FAA, and CAAC
Release Certificate: EASA Form One

PaNet offers you besides its standard configuration options on your PGF pallets such as:



  • Colored edge rails and corners
  • your airline logo on the base sheet
  • net attachment points lacquered in your preferred color
  • IATA Codes engraved on red inserts on all four sides
  • attached Bluetooth module
  • Barcodes/QR codes as sticker
  • Permanently attached net



All options can be discussed with our sales team.
