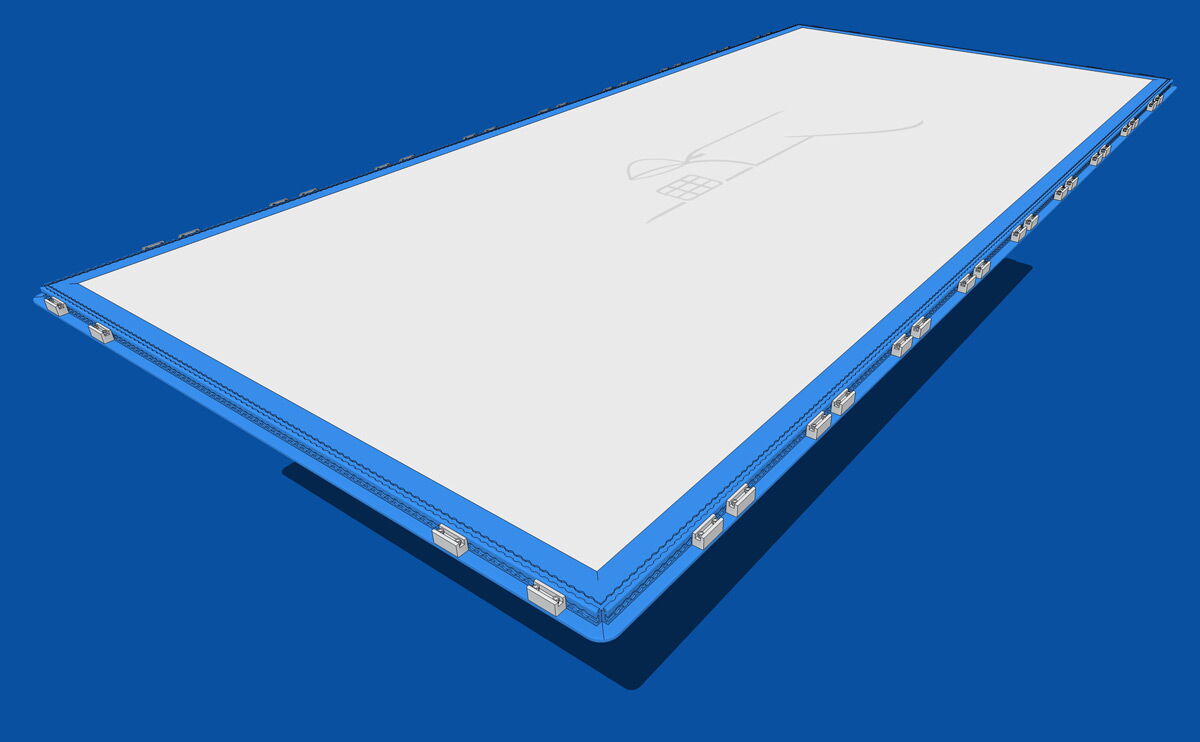

PRA Air Cargo Pallet 96" x 196"

The PalNet PRA air cargo pallet is the most reputed heavy duty pallet on the market right now. Due to its long lifetime, easy repair methods and short lead-times.  It performs reliable in the day to day Business around the world.

The PRA pallet consists of a frame of strong extrusions along the perimeter of thepallet. Horizontally the edge rails have a continuous seat track, vertically the seat track is equipped with 3-g holes between the side lock blocks. The PRA pallet core consists of 6 longitudinal double-t-stringers as stiffeners which are connected to the pallet frame. The top and bottom sheets are riveted to the pallet frame and the stiffeners by heavy duty blind rivets with a diameter of 6.4mm. The internal corners are of solid aluminium. The side lock blocks are vertically attached to the edge rails by bolts and nuts.

Data:

IATA PRA
Size 96" x 196"
Part-Number 25R02-()
MGW 11,340 kg / 25,000 lbs
Tare weight
4.5 mm sheet 454 kg / 1,001 lbs
NAS 3610-Code 2R1P
Documentation CMM and IPL are available on request
Certified by EASA and FAA
Release Certification EASA Form One

PalNet offers you besides its standard configuration options on your PRA pallets such as:



  • Colored edge rails and corners
  • your airlines logo on the base sheet
  • net attachment points lacquered in your preferred colour
  • IATA Codes engraved on red inserts on all four sides
  • attached Bluetooth module
  • Barcodes/QR codes as sticker
  • Permanently attached net



All options can be discussed with our sales team.
