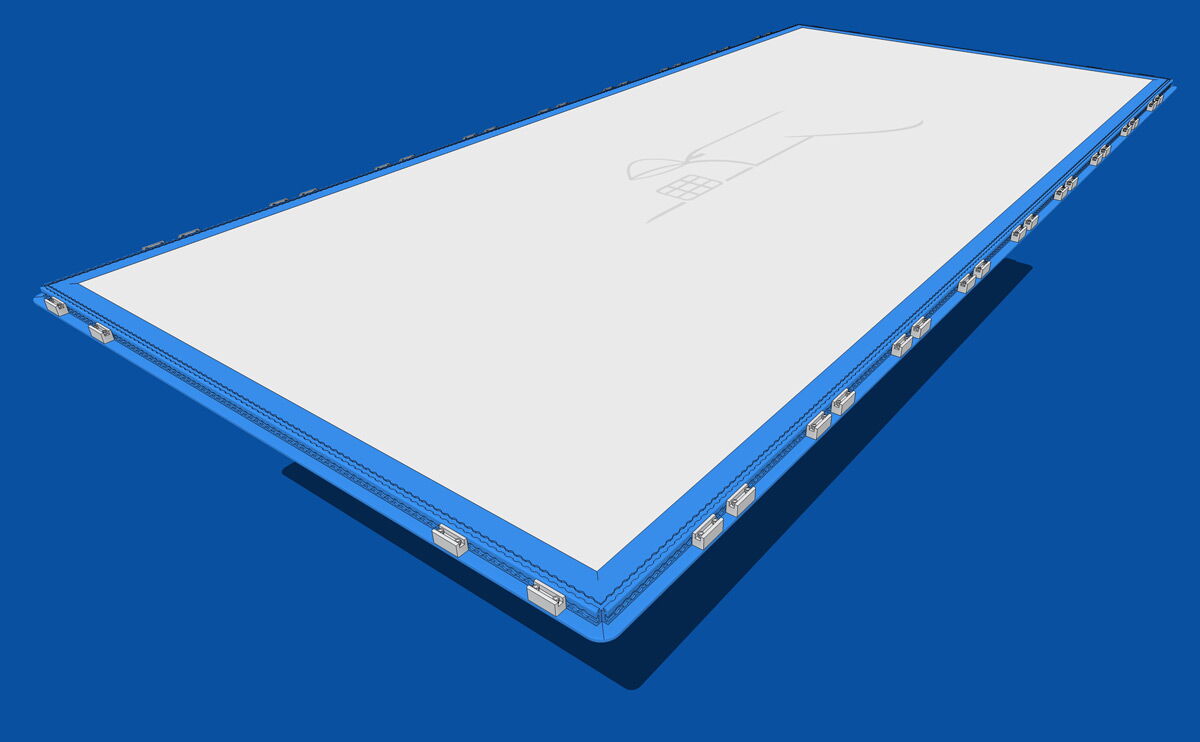

PZA Air Cargo Pallet 96" x 196"
The PalNet PZA air cargo pallet is the most reputed heavy duty pallet on the market right now. Due to its long lifetime, easy repair methods and short lead times. It performs reliable in its day to day business around the world.
The PZA pallet consists of a frame of strong extrusions along the perimeter of the pallet. Horizontally the edge rails have a continuous seat track, vertically the seat track is equipped with 3-g holes between the side lock blocks. The PZA pallet core consists of 6 longitudinal double-t-stringers as stiffeners which are connected to the pallet frame. The top and bottom sheets are riveted to the pallet frame and the stiffeners by heavy duty blind rivets with a diameter of 6.4mm. The internal corners are of solid aluminium. The side lock blocks are vertically attached to the edge rails by bolts and nuts. The top plate has integrated seat tracks to accommodate car transportation racks.
Data:
| IATA | PZA |
|---|---|
| Size | 96" x 196" |
| Part-Number | 25R02-PZA-() |
| MGW | 11,340 kg / 25,000 lbs |
| Tare weight | |
| 4.5 mm sheet | 460 kg / 1,014 lbs |
| NAS 3610-Code | 2R1P |
| Documentation | CMM and IPL are available on request |
| Certified by | EASA and FAA |
| Release Certification | EASA Form One |
PalNet offers you besides its standard configuration options on your PZA pallets such as:
- Colored edge rails and corners
- your airlines logo on the base sheet
- net attachment points lacquered in your preferred colour
- IATA Codes engraved on red inserts on all four sides
- attached Bluetooth module
- Barcodes/QR codes as sticker
- Permanently attached net
All options can be discussed with our sales team.
